What is Metadata?

  • You can use the optional metadata section to include arbitrary YAML that provides details about the template or resources.
Metadata:
   Instances:
      Description: "Information about the instances"
   Databases:
      Description: "Information about the databases"

Special metadata keys

  • There are 3 metadata keys that have special meaning:
    • AWS::CloudFormation::Designer
      • Describes how the resources are laid out in your template.  This is automatically added by the AWS Designer.
    • AWS::CloudFormation::Interface
      • Defines grouping and ordering of input paramters when they are displayed in the AWS Console.
    • AWS::CloudFormation::Init
      • Defines configuration tasks for cfn-init.  This is the most powerful usage of the metadata to be discussed in the next section.

Designer Hands On

https://www.udemy.com/aws-cloudformation-master-class/learn/v4/t/lecture/8162172?start=0

  • This is the easiest kind of Metadata.  It is automatically generated for you.
    • Use it to move item placement or their size in Designer
Metadata:
  'AWS::CloudFormation::Designer':
    6b0c3e59-...-888dcdb37=da:
      size:
        width: 60
        height: 60
      position:
        x: 250
        y: 250
        z: 0

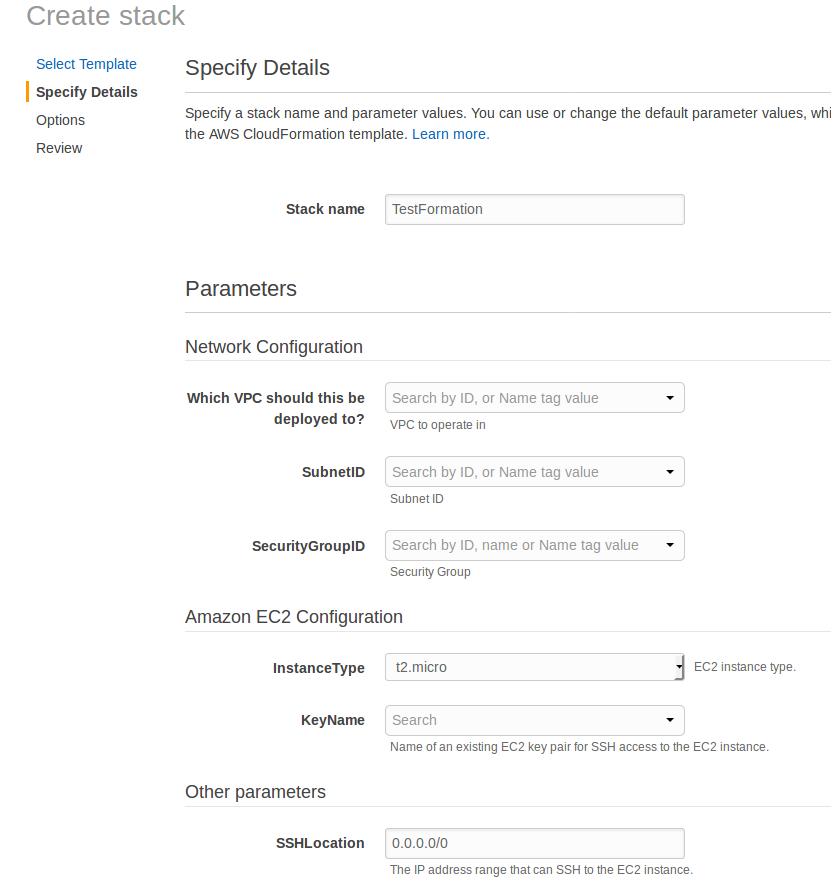

Interface Hands On

  • Define grouping and ordering of input parameters when they are displayed in the AWS Console
  • This is meant when users must input template parameters manually
  • You provide them with grouping, or sorting, that allow them to input parameters efficiently
    • Example: Group all the EC2 related parameters together
---
Parameters:
  KeyName:
    Description: Name of an existing EC2 key pair for SSH access to the EC2 instance.
    Type: AWS::EC2::KeyPair::KeyName
  InstanceType:
    Description: EC2 instance type.
    Type: String
    Default: t2.micro
    AllowedValues:
    - t2.micro
    - t2.small
    - t2.medium
    - m3.medium
    - m3.large
    - m3.xlarge
    - m3.2xlarge
  SSHLocation:
    Description: The IP address range that can SSH to the EC2 instance.
    Type: String
    MinLength: '9'
    MaxLength: '18'
    Default: 0.0.0.0/0
    AllowedPattern: "(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})\\.(\\d{1,3})/(\\d{1,2})"
    ConstraintDescription: Must be a valid IP CIDR range of the form x.x.x.x/x.
  VPCID:
    Description: VPC to operate in
    Type: AWS::EC2::VPC::Id
  SubnetID:
    Description: Subnet ID
    Type: AWS::EC2::Subnet::Id
  SecurityGroupID:
    Description: Security Group
    Type: AWS::EC2::SecurityGroup::Id

Resources:
  MyEC2Instance:
    Type: "AWS::EC2::Instance"
    Properties:
      AvailabilityZone: us-east-1a
      ImageId: ami-a4c7edb2
      InstanceType: !Ref InstanceType
      SecurityGroups:
        - !Ref SecurityGroupID
      SubnetID: !Ref SubnetID

Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Network Configuration"
        Parameters:
          - VPCID
          - SubnetID
          - SecurityGroupID
      - Label:
          default: "Amazon EC2 Configuration"
        Parameters:
          - InstanceType
          - KeyName
    ParameterLabels:
      VPCID:
        default: "Which VPC should this be deployed to?"


Quiz

Metadata is

  • Optional
  • Mandatory

Metadata can take

  • Any value
  • One the values AWS::CloudFormation::Designer, ::Interface, ::Init

Metadata is whatever YAML you want, but some values have special meaning in AWS.
