Section 24: ACLs – Access Control Lists

  ICND1 CCENT

< Section 23 | Home | Section 25 >

76% Complete!

153. Introduction

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677024#content



154. Access Control Lists Overview

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677036#content

Access Control Lists

  • Identifies traffic based on characteristics of the packet, such as source IP, Dest IP, port number
  • The router or switch can take an action based on the result of the ACL
  • ACLs are supported on both routers and switches (R/S).

ACLs for Security

  • Original use of ACLs was as a security feature to decide if traffic should be allowed to pass through the R/S
  • By default, an R/S will allow all traffic to pass between its interfaces
  • When ACLs are applied, the R/S identifies the traffic and then decides if it will be allowed or not.

Other Uses

  • ACLs are also used in other software policies when traffic has to be identified.
    • Identify traffic to give better service to in an QoS Quality of Service policy
    • Identify traffic to translate to a different IP address in a NAT Network Address Translation policy.

ACE Access Control Entries

  • Access Control Lists are made up of Access Control Entries, which are a series of permit or deny rules
  • Each ACE is written in a separate line

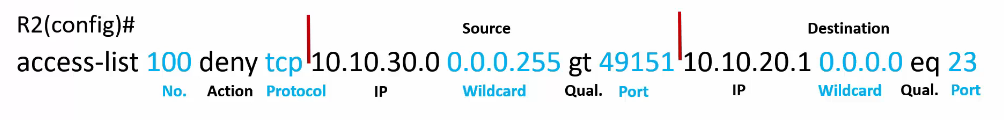

access-list Number Action Protocol SourceIP SourceWildCard SourceQualifier SourcePort DestIP DestWildCard DestQualifier DestPort
  • The ACL is a series of these commands that form the list.

Note:

  • Starting with Windows 7, outgoing port numbers start with 49152
  • Previous versions started with 1024

155. Standard, Extended and Named ACLs

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677042#content

Standard vs Extended ACLs

  • IP standard access list: 1 – 99
  • IP extended access list: 100 – 199
  • IP standard access list (expanded range): 1300 – 1999
  • IP extended access list (expanded range): 2000 – 2699
  • ! Truncated!

Standard vs Extended

  • Standard ACLs only list the source IP address
  • Extended ACLS also include
    • Protocol (TCP/UDP/IPMC…)
    • Destination address
    • Port number

Standard Example

r1(config)# access-list 1 deny 10.10.10.10 0.0.0.0
r1(config)# access-list 1 permit 10.10.10.0 0.0.0.255
  • The default wildcard mask for a Standard ACL is 0.0.0.0, meaning an idividual host address
    • access-list 1 deny 10.10.10.10
      • This is the same as ‘access-list deny 10.10.10.10 0.0.0.0’
  • Do not forget to enter the wildcard when allowing/blocking an IP subnet
    • access-list deny 10.10.10.0 0.0.0.255

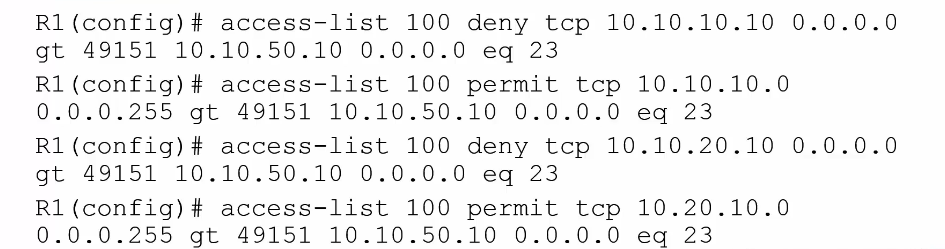

Extended ACL Examples

  • Extended ACLs DO NOT have a default wildcard mask!
r1(config)# access-list 100 deny tcp 10.10.10.10 0.0.0.0 gt 49151 10.10.50.10 0.0.0.0 eq 23
r1(config)# access-list 100 permit tcp 10.10.10.0 0.0.0.255 gt 49151 10.10.50.10 0.0.0.0 eq telnet

Named Access Lists

  • Access Control Lists referenced by name start with `ip`
r1(config)# ip access-list <standard|extended> MyAclName
r1(config-extended-nacl)# permit 10.10.10.0 0.0.0.255



156. ACL Syntax

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677048#content

Standard

r1(config)# access-list 1 ?
  deny    Specify packets to reject
  permit  Specify packets to forward
  remark  Access list entry comment



Extended

r1(config)# access-list 100 ?
  deny     Specify packets to reject
  dynamic  Specify a DYNAMIC list of PERMITs or DENYs
  permit   Specify packets to forward
  remark   Access list entry comment

r1-dhcp(config)#access-list 100 permit ?
  <0-255>       An IP protocol number
  ahp           Authentication Header Protocol
  eigrp         Cisco's EIGRP routing protocol
  esp           Encapsulation Security Payload
  gre           Cisco's GRE tunneling
  icmp          Internet Control Message Protocol
  igmp          Internet Gateway Message Protocol
  ip            Any Internet Protocol
  ipinip        IP in IP tunneling
  nos           KA9Q NOS compatible IP over IP tunneling
  object-group  Service object group
  ospf          OSPF routing protocol
  pcp           Payload Compression Protocol
  pim           Protocol Independent Multicast
  sctp          Stream Control Transmission Protocol
  tcp           Transmission Control Protocol
  udp           User Datagram Protocol

r1-dhcp(config)#access-list 100 permit tcp ?
  A.B.C.D       Source address
  any           Any source host
  host          A single source host
  object-group  Source network object group

ACL Definitions

Protocols

  • TCP & UDP
    • You can use a specific Port to restrict a specific application
  • IP – All traffic. Includes UDP, TCP. ICMP, Network Discovery, Routing Information, etc.

Sources and Destinations

  • Wildcards
    • 0.0.0.0 = 255.255.255.255 subnet mask – aka, a specific IP address / host
      • host IP.ADD.RE.SS = IP.ADD.RE.SS 0.0.0.0
    • any
      • any = 0.0.0.0 255.255.255.255

Port Numbers

Source

  • any: match all ports (This is the default if not listed)
  • eq X: port is exactly ‘X’
  • gt/lt X: Match packets with a port greater than / less than ‘X’
  • range: Match ports within the range specified
  • neq X: Not Equal. Port does not match ‘X’

Destination

Destination ports have well known port numbers built in.

  • eq www, eq telnet, eq dns, etc

Logging

  • To log a packet request that attempts to break an ACL rule, suffix the rule with the word ‘log’
  • Logging is for an external server or something – INCOMPLETE
access-list 100 deny tcp host 10.10.10.10 10.10.20.0 0.0.0.255 eq ssh log LOG-NAME?

Troubleshooting

show access-lists

  • These commands will also show you how many log entries matched the rules.
    • By ‘match’, it means the traffic was permitted or denied according to the rule.
    • If you are expecting traffic to flow, but you do not see the count incrementing, it is likely being blocked/prevented somewhere else. (connectivity? switchport down?)
      • ‘Log’ keyword is NOT required for these counters.
#show access-list
#show access-list 100
Extended IP access list 100
deny tcp host 10.10.10.10 10.10.20.0 0.0.0.0 eq ssh (13 match(es))



157. ACL Operations

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677060#overview

  • ACLs are applied at the Interface Level with the Access-Group command
  • ACLS can be applied in the Inbound or Outbound direction
  • You can have a maximum of one ACL per interface per direction
  • You can have both an inbound and outbound ACL on the same interface
    • You cannot have 2 ACLs on one interface with both Inbound or both Outbound
  • An Interface can have
    • No ACLs
    • 1 Inbound
    • 1 Outboud
    • 1 Inbound and 1 Outbound

Access Group Configuration

r1(config)# interface f0/1
r1(config-if)# ip access-group 100 out
r1(config-if)# ip access-group 101 in

ACL Show Commands

show running-config
show ip interface f0/1 | include access list
show access-lists
show access-lists 110

Access Control Entry Order

  • The order of rules are important!
  • ACLs are read from top to bottom
  • As soon as a rule matches the packet, the permit or deny action is applied and the ACL is not processed any further.

Example: Deny 10.10.10.10 but permit the rest of 10.10.10.0/24

access-list 1 deny host 10.10.10.10
access-list 1 permit 10.10.10.0 0.0.0.255

Example: Permit all 10.10.10.0/24 including 10.10.10.10

access-list 1 permit 10.10.10.0 0.0.0.255
access-list 1 deny 10.10.10.1

ACEs (Access Control Entry) are automatically incremented by 10

show access-lists 110
Extended IP access list 110
  10 deny tcp host 10.10.10.10 host 10.10.50.10 eq telnet
  20 permit tcp 10.10.10.0 0.0.0.255 host 10.10.50.10 eq telnet
  30 deny tcp host 10.10.20.10 host 10.10.50.10 eq telnet
  40 permit tcp 10.20.10.0 0.0.0.255 host 10.10.50.10 eq telnet

Injecting ACEs requires using Named ACL convention

  • This was originally only allowed on named ACLs. but now works on Numbered as well
(config)# ip access-list extended 110
(config-ext-nacl)# 15 deny tcp host 10.10.10.11 host 10.10.50.10 eq telnet
(config-ext-nacl)# end
show access-lists 110
Extended IP access list 110
10 deny tcp host 10.10.10.10 host 10.10.50.10 eq telnet
15 deny tcp host 10.10.10.11 host 10.10.50.10 eq telnet
20 permit tcp 10.10.10.0 0.0.0.255 host 10.10.50.10 eq telnet
30 deny tcp host 10.10.20.10 host 10.10.50.10 eq telnet
40 permit tcp 10.20.10.0 0.0.0.255 host 10.10.50.10 eq telnet

Implicit Deny All

  • There is an implicit ‘deny any any` rule at the bottom of ACLs
  • If an ACL is not applied to an interface, all traffic is allowed.
  • If an ACL is applied, all traffic is denied except what is explicityly allowed.

Example: Traffic from 10.10.10.0/24 is allowed, all other traffic is denied.

access-list 1 permit 10.10.10.0 0.0.0.255

Explicit Permit All

  • You can override the implicity ‘Deny All’ by adding a Permit All line at the end of the ACL.
access-list 1 deny 10.10.10.0 0.0.0.255
access-list 1 permit any

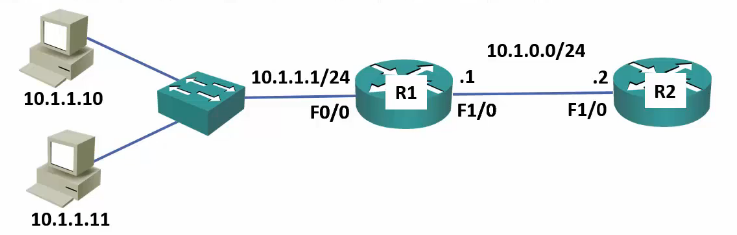

Traffic Sourced from Router

  • ACLs applied to an interface DO NOT apply to traffic that originates from the router itself.
  • The hosts in the 10.1.1.0/24 subnet cannot telnet to R2
  • An Admin can telnet to R2 from the CLI on R1

(config)# access-list 100 deny tcp any any eq telnet
(config)# int f1/0
(config-int)# ip access-group 100 out



158. Numbered ACLs Lab Demo

https://www.udemy.com/course/cisco-icnd1/learn/lecture/8677054#overview

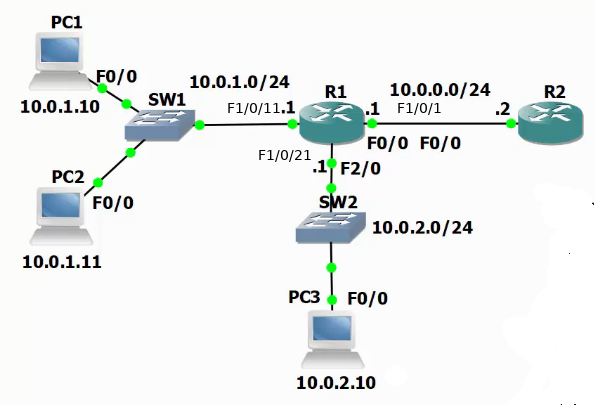

Inital Setup

  • All PCs have connectivity everywhere.
  • My lab has an additional 10.1.0.2/24 on R2 F0/1
R1# show ip route
     10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C       10.0.2.0/24 is directly connected, FastEthernet1/0/21
C       10.0.0.0/24 is directly connected, FastEthernet1/0/1
S       10.1.0.0/16 [1/0] via 10.0.0.2
C       10.0.1.0/24 is directly connected, FastEthernet1/0/11

Example 1: PCs in 10.0.2.0/24 should not have connectivity to R2

Using a standard ACL

R1(config)# access-list 21 deny 10.0.2.0 0.0.0.255
R1(config)# access-list 21 permit 10.0.1.0 0.0.0.255
R1(config)# int f1/0/1
ip access-group 21 out

Test

PC3$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2) 56(84) bytes of data.
From 10.0.2.1 icmp_seq=1 Packet filtered
From 10.0.2.1 icmp_seq=2 Packet filtered
From 10.0.2.1 icmp_seq=3 Packet filtered

PC1$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2) 56(84) bytes of data.
64 bytes from 10.0.0.2: icmp_seq=1 ttl=254 time=1.13 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=254 time=1.10 ms
64 bytes from 10.0.0.2: icmp_seq=3 ttl=254 time=1.10 ms

You Were Here ~8:00

Example 2: Permit telnet from PC1 to R2.  All others denied.

R1(config)# access-list 100 permit tcp host 10.0.1.10 host 10.0.0.2 eq telnet
R1(config)# access-list 100 deny tcp any host 10.0.0.2 eq telnet
R1(config)# access-list 100 permit ip any any
R1(config)# int f1/0/1
R1(config-if)#ip access-group 100 ou
