Section 5: OSI Layer 4 – Transport Layer

  Uncategorized

< Section 4 | Home | Section 6 >

11% Complete

The Transport Layer Header, TCP and UDP

https://www.udemy.com/cisco-icnd1/learn/lecture/8589334#overview

Transport Layer

  • The Transport layer provides transparent transfer of data between hosts and is responsible for end-to-end recovery and flow control
  • Flow control is the process of adjusting the flow of data from the send to ensure that the receiving host can handle it.
    • If this is enabled and the receiving host cannot keep up with the sender, there is a mechanism in place telling the sender to slow down.

Session Multiplexing

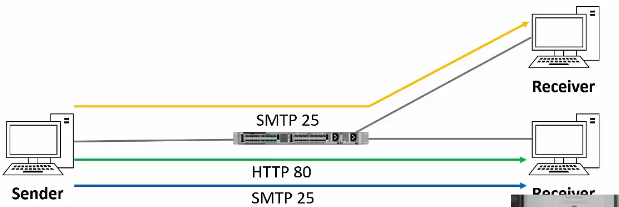

  • Session multiplexing is the process by which a host is able to support multiple sessions simultaneously and manage the individual traffic streams over a single link.

Port Numbers

  • The Layer 4 destination port number is used to identify the upper layer protocol (i.e. which application the data is for).
    • HTTP uses Port 80
    • SMTP uses Port 25

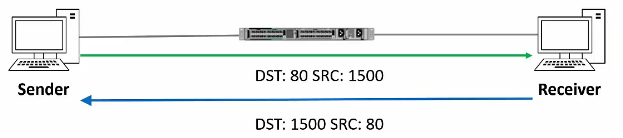

  • The sender also adds a source port number to the Layer 4 header
  • The combination of source and destination port numbers can be used to track sessions

Side Note: Stateful firewalls work by allowing data from the network back into the network from an outside host by validating the initial traffic was initiated from within the network.

TCP

  • TCP (Transport Control Protocol) and UDP (User Datagram Protocol) are the most common layer 4 protocols.
  • TCP is connection oriented.  Once a connection is established, data can be send bidirectionally over that connection.
  • TCP carries out sequencing to ensure segments are processed in the correct order and none are missing.
  • TCP is reliable.  The receiving host sends acknowledgments back to the sender.  Lost segments are resent.
  • TCP performs flow control.
    • A type of speed control / throttle

TCP Three-Way Handshake

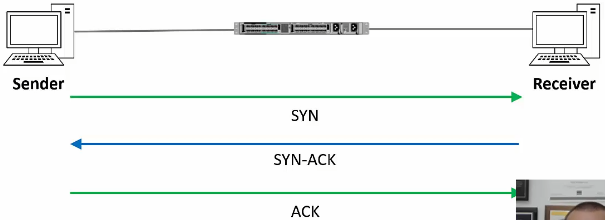

  • SYN (Syncronize) > SYN-ACK (Sync Acknowledgement) > ACK

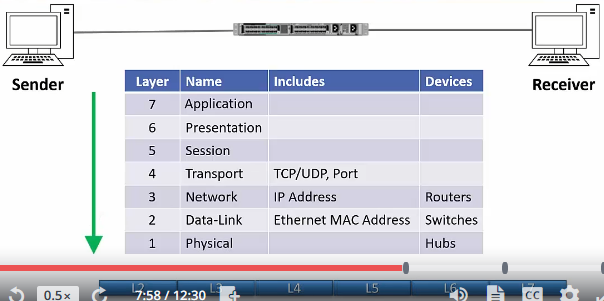

TCP Header Encapsulation Overview

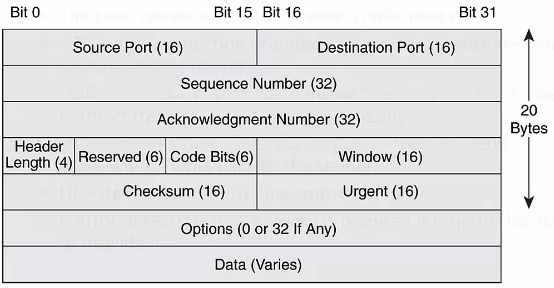

TCP Header

  • Source and Destination Ports
  • Sequence number
  • Ack number
  • Size of Header
  • Code bits and Window are used for Flow Control
  • Checksum for data integrity
  • Urgent (Optional)
  • Options (Optional, duh!)
  • Data

UDP – User Datagram Protocol

  • The User Datagram Protocol sends traffice ‘best effort’
  • UDP is not connection oriented.  There is no handshake connection setup between the hosts
  • UDP does not carry out sequencing to ensure segments are processed in the correct order or that none are missing.
  • UDP is NOT RELIABLE.  The receiving host does not acknowledge if the data was ever received.
  • UDP does not perform flow control
  • If error detection and recovery is required, it is up to the upper layers to provide it.

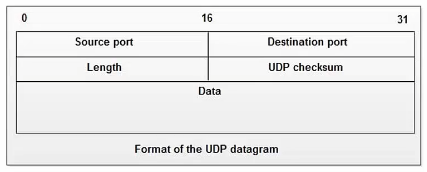

UDP Header

TCP vs UDP

  • Application developers will typically choose to use TCP for traffic which requires reliability.
  • Real-time applications such as voice and video can’t aford the extra overhead of TCP so they use UDP.
    • i.e. latency sensitive data
  • Some applications can use both TCP and UDP.

Common Applications and Ports

  • TCP
    • FTP: 21
    • SSH: 22
    • Telnet: 23
    • HTTP: 80
    • HTTPS: 443
  • UDP
    • TFTP: 69
    • SNMP: 161
  • TCP & UDP
    • DNS: 53
